20W Interchangeable Power Adapter

20W Interchangeable Power Adapter
Details:
Type:Interchangeable power adapter
Material:PC Fireproof Material
INPUT:100-240VAC 50/60Hz 0.8A max
Output Voltage:3-24V
Output Current:0.01-3.5A
Send Inquiry
Description
Send Inquiry

Item

20W interchangeable power adapter, detachable plug power adapter,exchangeable power adapter

Type:

Interchangeable power adapter

Material

PC Fireproof Material

INPUT

100-240VAC 50/60Hz 0.8A max

Output Voltage

3-24V

Output Current

0.01-3.5A

Output

12V1.5A, 5V3A, 9V2A etc. interchangeable power adapter
Or consult us for specific voltage and current to see if it can be customized or not

Features

Ripple & Noise

<120mV

Energy star level

Eup, Doe VI, CEC VI, CoC VI

Efficiency

ERP / CEC-VI standard CoC Tier 2

Installing

Available for the system of Safety Class I/II

Safety&EMC

Safety Standard

IEC62368, IEC60335, IEC61558, IEC1310, IEC61347

Safety Approvals

CCC/UL/CE/FCC/CB/KC/KCC/PSE/cUL/TUV/UKCA/NOM/RCM/EAC/ROHS/REACH
for more information, please contact us.

MTBF

10K hours min. MIL-HDBK-217F (25℃)

Machanicals

DC Connectors

USB-A, USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

Application

Advantage

Ultra-small size, light weight, streamline, fully sealed and easy to carry
Low-cost design, high reliability, ultrasonic lamination, fireproof housing
constant voltage mode, high precision, low noise

usage

sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc.
facial machines, hair removal device, etc.
massage gun, E-bike, scooter, etc.



Cenwell 20W Interchangeable Power Adapter with EU, AU, US, UK, KR, and CCC Plug.

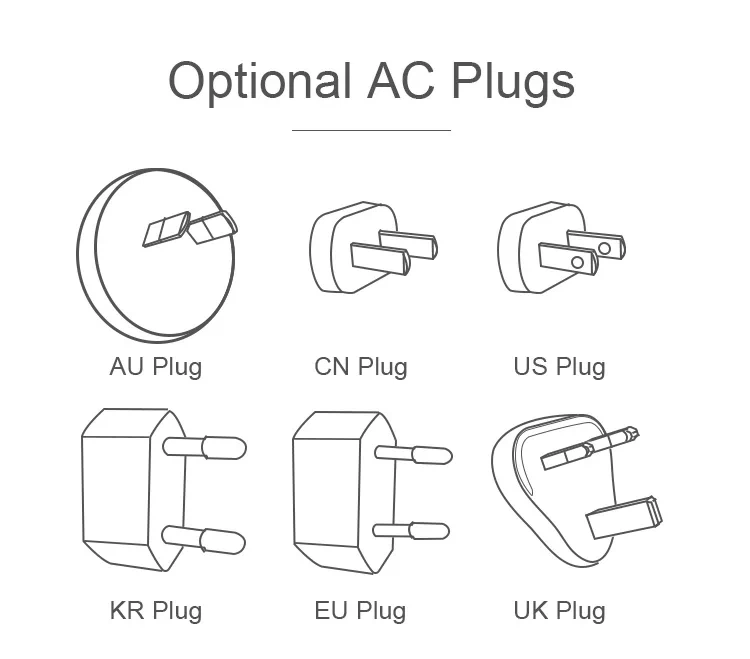

This 20W interchangeable power adapter is designed to provide a versatile and reliable power solution for devices worldwide. With interchangeable plug types, it supports the following regions:

• EU (Type C)

• AU (Type I)

• US (Type A)

• UK (Type G)

• KR (Type C)

• CCC (China Compulsory Certification) for Chinese safety standards



Features:



1. Output Power:

• Provides a 20W output, typically around 12V1.5A, 5V3A, 9V2A, suitable for charging smartphones, tablets, cameras, and other low-power devices.

2. Interchangeable Plug System:

Allows seamless connection across different regions by easily swapping plug types to match local power outlets.

3. Global Compatibility:

Supports a wide voltage range (100-240V AC) for international use, ensuring consistent performance regardless of location.

4. Safety Certifications:

• CCC (China), CE (Europe), ETL/FCC (United states), KC/KCC (Korea), PSE(Japan), SAA/C-Tick/RCM (Australia) and RoHS/ Reach/ CB compliant for safety and environmental protection.

• Built-in features such as overcurrent protection, short-circuit protection, and temperature control to ensure device safety.

5. Durability and Design:

Made with durable, high-quality materials to withstand daily use and frequent travel.

This adapter is ideal for travelers, professionals, and anyone needing a reliable power solution for multiple regions.

product-511-400
product-511-400
product-511-400





product-750-659











**Power Adapter FAQ**

*1. What is a power adapter?*

A power adapter is a device that converts electrical power from a wall outlet (AC power) into a form suitable for electronic devices (DC power). It also adjusts voltage and current to match the requirements of your device.



*2. What's the difference between a charger and a power adapter?*

A "charger" includes circuitry to manage battery charging (e.g., for smartphones). A "power adapter" simply provides power without charging logic (e.g., for routers or monitors). All chargers are adapters, but not all adapters are chargers.



*3. What types of power adapters exist?*

- AC/DC Adapters: Convert AC to DC power.

- USB Adapters: Provide USB ports for charging (e.g., USB-A, USB-C).

- Travel Adapters: Change plug shape for international outlets (no voltage conversion).

- Variable Voltage Adapters: Allow adjustable output (e.g., 3V–12V).



*4. How do I know if an adapter is compatible with my device?*

Check:

- Voltage (V): Must match your device's input (e.g., 5V, 12V).

- Current (A or mA): Adapter's current should meet or exceed the device's requirement.

- Connector Size/Polarity: Tip size and polarity (e.g., center-positive) must match.



*5. What happens if I use the wrong adapter?*

- Overvoltage: May damage the device.

- Undervoltage: Device may not work or charge slowly.

- Incorrect Polarity: Risk of short circuits or permanent damage.



*6. Are third-party adapters safe?*

Yes, if they are certified (e.g., UL, CE, FCC) and match your device's specs. Avoid uncertified, cheap alternatives.



*7. Can I use a higher-amp adapter than required?*

Yes. Devices draw only the current they need. Ensure voltage matches exactly.
