Product Name |
24W power adapter, 24W AC/DC adapter, 24W power supply |
|||
|
Type |
plug in adapter/wall adapter |
|||
|
Material |
PC Fireproof Material |
|||
|
Input |
100-240VAC ± 10%; 50/60Hz; 0.8A Max; |
|||
|
Output voltage |
3-24V |
|||
|
Output current |
0.01-4A |
|||
|
Output |
12V2A, 24V1A, 5V4.8A Or consult us for specific voltage and current to see if it can be customized or not |
|||
|
Pins |
CN/US/JP/EU/KR/UK/AU/NZ, locking-type plug or detachable-type plug |
|||
|
Protection |
over-voltage, over-current, short circuit protection |
|||
|
Advantages |
Ultra-small size, light weight, streamline, fully sealed and easy to carry |
|||
|
Certificates |
CCC/UL/cUL/ETL/FCC/CE/GS/CB/KC/KCC/PSE/SAA/C-Tick/RoHS/Reach etc |
|||
|
Energy efficiency |
ERP/ CEC/ GEMS/ MEPS standard |
|||
|
Package |
(1) Specialized shipping box for sample; |
|||
|
Usage |
Intelligent home appliance |
medical beauty machines |
Consumer electronics |
Sports equipment |
|
sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc. |
facial machines, hair removal device, etc. |
tablet, laptop, switch, set top box, electronic musical instrument, etc. |
massage gun, E-bike, scooter, etc. |
|

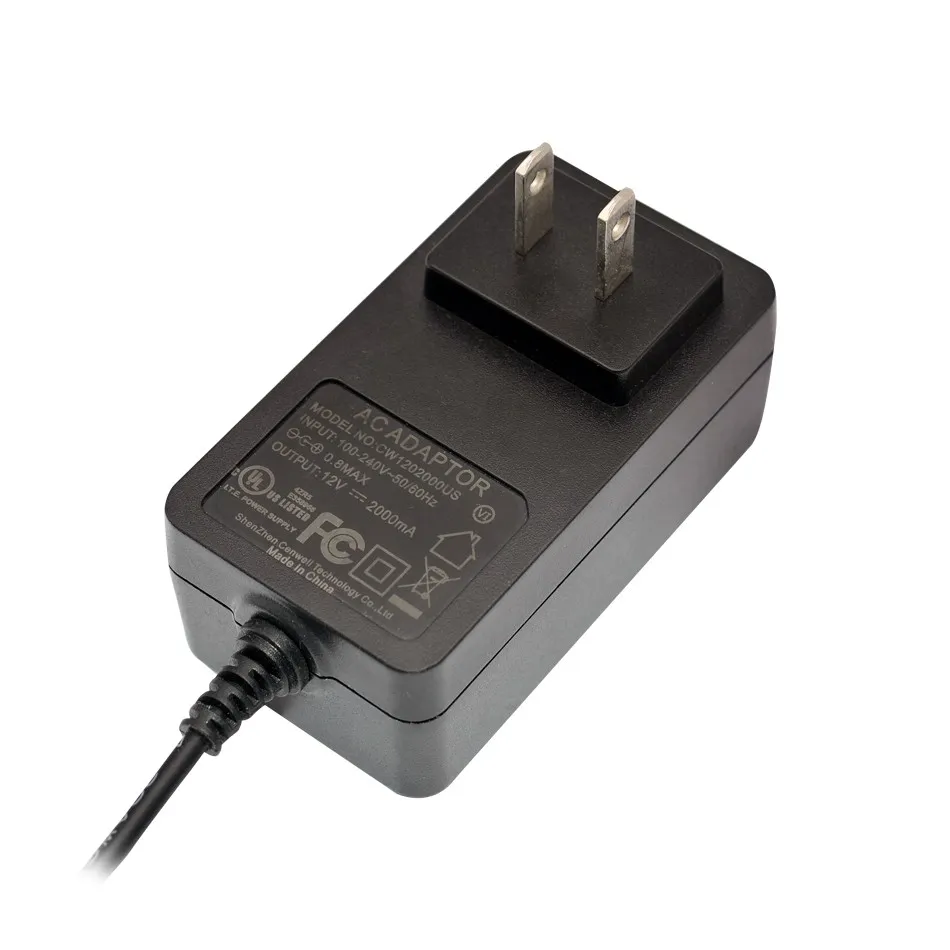

AC DC Power Adapter 12V 2A Power Supply 24W for LED Strip Light EU US Wall Mount 12V 2A Power Adapter
1. Power Output
The adapter provides a maximum output of 24 watts, supporting various voltage and current configurations depending on the application, such as:
• 5V/4.8A
• 12V/2A
• 24V/1A
This wide range of output options makes it suitable for devices requiring stable power delivery and higher energy demands.
2. Electrical Specifications
• Input Voltage:
• Supports 100-240V AC, 50/60Hz, making it compatible with global power systems.
• Output Voltage and Current:
• Provides regulated DC output with options such as 5V, 9V, 12V, 15V, or 24V, depending on the device.
• Efficiency:
• Complies with advanced energy efficiency standards like DOE Level VI or EU CoC Tier 2, reducing power loss and heat generation.
• Ripple and Noise:
• Designed to ensure low ripple and noise, providing clean and stable power for sensitive electronics.
3. Design and Build
• Compact Size:
• Lightweight and portable, ideal for home, office, and travel.
• Durable Construction:
• Made from high-quality, fire-resistant plastic for durability and safety.
• Connector Types:
• Typically equipped with DC barrel connectors (e.g., 2.1mm or 2.5mm), but also available with USB-C, USB-A, or custom connectors.
• Plug Types:
• Fixed regional plugs (US, EU, UK, etc.) or interchangeable plugs for international use.
4. Safety Features
The 24W AC-DC adapter is equipped with multiple safety mechanisms to ensure reliable operation:
• Over-Voltage Protection (OVP): Prevents output voltage from exceeding safe limits.
• Over-Current Protection (OCP): Safeguards against excess current draw.
• Short-Circuit Protection (SCP): Automatically shuts down the adapter during electrical faults.
5. Applications
The 24W wall AC-DC adapter is highly versatile and commonly used for:
• Consumer Electronics: Smartphones, tablets, wireless routers, and smart home devices.
• LED Lighting: Powers medium-sized LED strips, bulbs, or panels.
• Industrial Devices: Suitable for IoT sensors, small controllers, and industrial control systems.
• Audio Equipment: Powers amplifiers, speakers, and other audio accessories.
• Medical Devices: Used for low-power medical equipment like blood pressure monitors or nebulizers (certification required).
6. Certification and Compliance
High-quality 24W AC-DC adapters comply with international standards for safety and performance:
• Certifications: CE, FCC, UL, ETL, or other regional standards.
• RoHS Compliance: Guarantees the use of environmentally friendly, non-toxic materials.
• Energy Standards: Meets DOE Level VI, EU CoC Tier 2, or equivalent energy efficiency requirements.
Features:
1. High anti-interference and reliability.
2. Small ripple coefficient,high work efficiency,low standby power consumption,less heat,long lifespan(25,000hrs).
3. Small volume, Light weight, High efficiency.
4. Cooling by free air convection.
5. No-load power consumption<0.2W.
6. 100% full load burn-in test.
7. Through LPS (Limited power supply) test.
8. All items can be customized to your requirements.
9. A year warranty.
Q: Are you a manufacturer or a trader?
A: We are a professional manufacturer of power adapters.
Q: How do we ensure quality?
A: Our products undergo multiple quality inspections, with a 100% aging rate. They will be re-inspected before shipment, and you can verify the product quality upon receiving the samples.
Q: How can I obtain an accurate quotation?
A: The price varies significantly based on different specifications; therefore, we need to understand the details of your product in order to provide you with a quote.
Q: Can I purchase customized products?
A: Yes, we support customized products, including custom colors, packaging, trademarks, patterns, and DC cable lengths.
Q: Are samples available?
A: Yes, we can provide 1-3 free samples; however, you will need to cover the shipping costs.
Q: What applications are your products suitable for?
A: Our products are widely used in security equipment, LED lighting fixtures, fans, routers, set-top boxes, computers, projectors, household appliances, beauty devices and more.
Q: What services do we offer?
Delivery terms accepted include FOB, CIF, and EXW.
Accepted payment currencies include USD.
Languages spoken include English.
**Power Adapter FAQ**
*1. What is a power adapter?*
A power adapter is a device that converts electrical power from a wall outlet (AC power) into a form suitable for electronic devices (DC power). It also adjusts voltage and current to match the requirements of your device.
*2. What's the difference between a charger and a power adapter?*
A "charger" includes circuitry to manage battery charging (e.g., for smartphones). A "power adapter" simply provides power without charging logic (e.g., for routers or monitors). All chargers are adapters, but not all adapters are chargers.
*3. What types of power adapters exist?*
- AC/DC Adapters: Convert AC to DC power.
- USB Adapters: Provide USB ports for charging (e.g., USB-A, USB-C).
- Travel Adapters: Change plug shape for international outlets (no voltage conversion).
- Variable Voltage Adapters: Allow adjustable output (e.g., 3V–12V).
*4. How do I know if an adapter is compatible with my device?*
Check:
- Voltage (V): Must match your device's input (e.g., 5V, 12V).
- Current (A or mA): Adapter's current should meet or exceed the device's requirement.
- Connector Size/Polarity: Tip size and polarity (e.g., center-positive) must match.
*5. What happens if I use the wrong adapter?*
- Overvoltage: May damage the device.
- Undervoltage: Device may not work or charge slowly.
- Incorrect Polarity: Risk of short circuits or permanent damage.
*6. Are third-party adapters safe?*
Yes, if they are certified (e.g., UL, CE, FCC) and match your device's specs. Avoid uncertified, cheap alternatives.
*7. Can I use a higher-amp adapter than required?*
Yes. Devices draw only the current they need. Ensure voltage matches exactly.
